Low Maintenance Gear Structure Wood Pellet Press Machine Straw
Pellet Making
Raw materil of Low Maintenance Gear Structure Wood Pellet Press Machine Straw
Pellet Making
1. Wood type:wood log wood shaving,wood branch,sawdust,branch,etc
both in softwood or hard wood .
2. Agricultrual type:straw,stalk,rice husk,peanut shell,bamboo
sawdust, sugar cane,etc.
3. others like palm fiber,coconut fiber,coffee waste ground
4.Waste : Industrial waste .paper mill waste ,waste cotton and
fiber etc .
All the raw material's size should be in 3-5mm,if not,it should be
prehanding by wood chipper ,hammer mill dryer etc ,and the moisture
of the raw material is about 12-18%,
The waste material such as waste plastice ,can be handled by
shredder .
Model: KLF630 (vertical)
Main motor power: 132/160KW
Auxiliary machine power: 7.5KW
Capacity: 2-3t/h (according to different material)
Weight: 10 tons
Shape parameter (mm): 4200*1500*2200
Roller mode: 2 rolls / automatic locking
Cooling method: circulating water cooling or circulating oil
cooling
Model: KLF880 (vertical)
Main motor power :160/200/220KW
Auxiliary machine power: 7.5KW
Capacity: 2.8-4 t/h (According to different material)
Weight: 14.2 tons
Shape parameter (mm): 4000*2000*2400
Press roller mode: 3 rollers / automatic locking
Cooling method: circulating water cooling or circulating oil
cooling

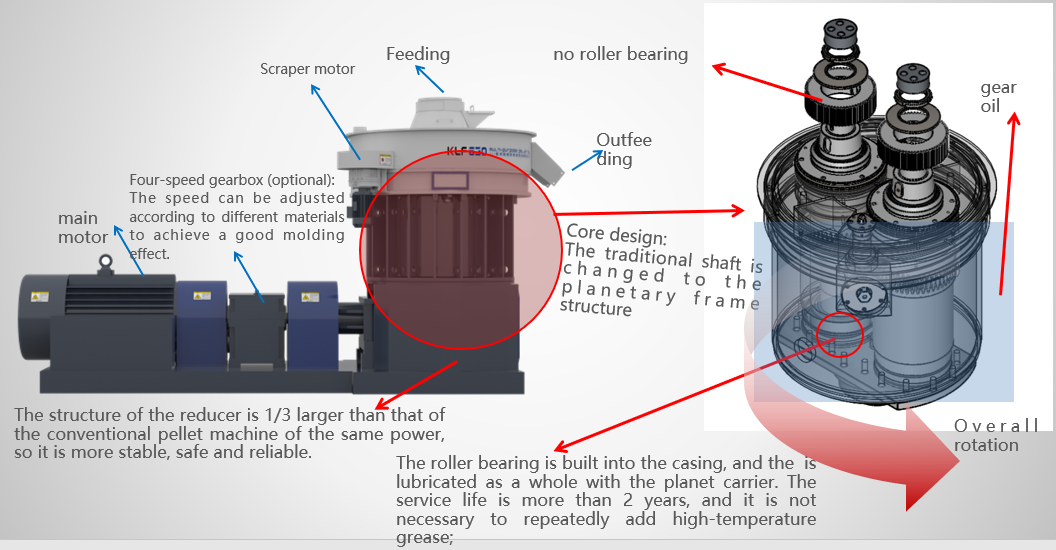

Advantage :
1. Grease free, no roller bearing in the wood pelleting chamber
2, optional four-speed shifting function, suitable for a variety of
materials
3, block material such as straw ,efb ,fiber can be made pellet
without fine crushing .
4.1/3 maintenance and labor cost is saved ,1/3 capacity increased .
