1-20t/h Biomass Pellet Making Machine
The biomass pellet machine is used to process Wood,logs,waste
wood,tree bark, straw, wheat,straw,rice husk,cotton stalk,coconut
juice slag,sunflower,olive pulp,paper,elephant grass,bamboo
shavings,bagasse,palm shell, peanut shell,corn cob,soybean
pole,weeds,branches,leaves,EFB,olive nut etc.into biomass pellet as
burning fuel .
All the raw material's size should be in 3-5mm,if not,it should be
prehanding by wood chipper ,hammer mill dryer etc ,and the moisture
of the raw material is about 12-18%,the moisture is little
different with material ..
Technical Parameters
Model | 420 | 508 | 630 | 880 | 700 |
| Capacity(t/h) | 1-1.5 | 1.5-1.8 | 2-2.5(vertical) | 2.5-3.5(vertical) | 2.5-3t/h(vertical) |
| Main Motor Power(kw) | 75/90 | 110/132 | 132/160 | 200/220 | 160-200kw |
| Feeder Power(kw) | 2.2 | 3 | 4 | 4 | 4 |
| Inner Diameter of Ring Die(mm) | 420 | 508 | 630 | 880 | 700mm |
| Pellet Diameter(mm) | 6-10 | 6-10 | 6-10 | 6-10 | 6-10mm |
Remarks
◆The above capacity comes from 8mm biomass pellets production.
◆The final capacity of Pellet Mill depends on the features of raw
materials, operation and maintenance,etc.
◆ There are 2/3 rollers in the pressing chamber.

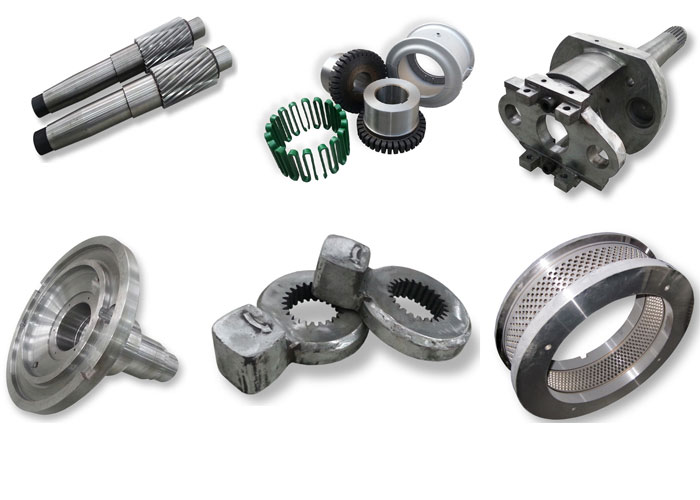

The quick parts of biomass pellet making machine:When the material
go into the chamber ,it is squeezed by ring die and roller shell
,so this two parts are easy to be worn .For different material such
as soft wood and hard wood ,it would result in different degree
wearing ,and the cleanliness of material like if iron stuff is
inside or not ,the moisture etc. all will influence using time of
ring die and roller shell .
Ring die
The material : Alloy steel(20CrMnTi) and Stainless steel (4Cr13)
Alloy structural steels, such as 20CrMnTi, 40Cr, 35CrMo, have
hardness of heat treatment above HRC50 and good comprehensive
mechanical properties. The ring die made of these materials has
high strength and good wear resistance, but its shortcoming is poor
corrosion resistance. Stainless steel materials are X46Cr13 (German
brand), 4Cr13, 3Cr13, etc. These materials are rigid. The hardness
of heat treatment is higher than HRC50, and it has good wear
resistance and corrosion resistance. It has a long service life
Factory introduction :Our factory was founded 2003, which was the earliest manufacturer
of biomass pelletizing machines in China. Since then we has only
produced biomass pelleting and related machines, wear parts for the
entire pelletizing technology and plant. It is located in
HuqiaoTown, ,Liyang City, Jiangsu. Its core business includes
design, manufacture,installation, assembly, training, accessories,
and after-sales servicof machinery and production lines used in
biomass pellet industry. Well over 400 plants and machines from our
factory have since enjoyed success with continuous use domestic an
worldwide, including:
Vietnam, Thailand, Malaysia, Indonesia, Russia, Bulgaria, Serbia,
England, Greece, Chile,
Mexico, Australia, etc.
