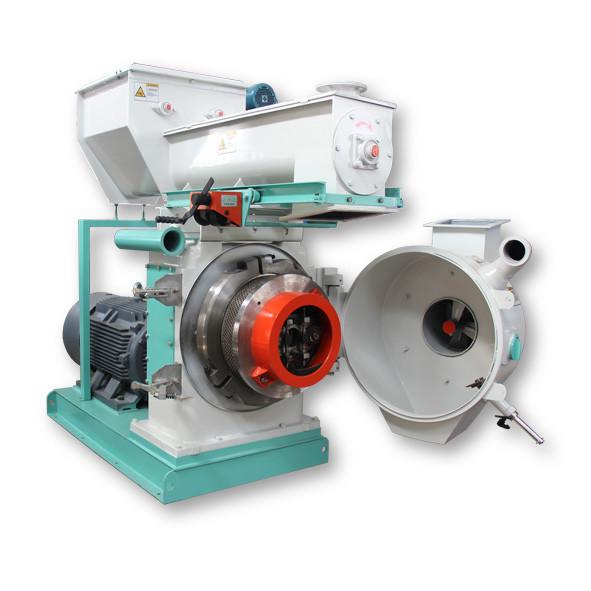

Small 1-1.5t/H 420 Wood Sawdust Pellet Machine In Making Biomass
small 1-1.5t/h 420 wood sawdust pellet mill machine used in making
biomass pellets
Wood pellet mill machine ,is also known as pellet press ,is widely
used in to make biomass , forest waste(Sawdust, branches, wood
shavings, straw, rice husk, grass, waste paper, EFB Palm fiber,
alfalfa, bagasse, coconut shell, bamboo powder, peanut shell) into
pellets ,which is a alternative fuel of coal ,gas ,with high
calorific value ,easy transportation ,high density factors .
1-1.5t/h flat die wood pellet mill machine
1. the working principle : the flat die wood pellet mill its main
working principle is that the motor is driven by high-precision
gears to drive the ring die to rotate at high speed. Two eccentric
pressure roller assemblies (extrusion cylinders) are arranged
inside, and the material enters the granulation chamber ,is
physically extruded into a diameter of 6-8- 10-12mm pellets .
2. The advantage :High-quality bearings are used in the
transmission part of the whole machine to ensure high-efficiency,
stable and low-noise transmission. The ring die adopts the
quick-discharge hoop type, and the feeding adopts the stainless
steel fan blade for forced feeding to ensure uniform feeding, The
motor and the gear box are connected by an international advanced
level compensation type serpentine spring coupling, which is fed
with variable frequency speed regulation to ensure uniform feeding.
- Technical Parameters
Manufacturer | Shandong ENCKE |
| Model No. | SZHL420 |
Capacity | 1000-1500KG/H |
| Mainly motor | 90 KW |
| Feeding screw | 2.2KW |
| Forced feeding motor | 1.1 KW |
Type | flat die |
| Dimension of machine | 2600x1300x2300mm |
| Weight of machine | 3500kg |
| Output pellets diameter | 6mm, 8mm, 10mm |
| Length of pellets | 1-10cm |
| Pellets density | 1.0-1.4g/cm3 |
| Suitable materials | Wood, Sawdust, Rice husk, EFB, Palm fiber, Sunflower husk, Stalk,
Grass…. |
| Electrical control cabinet | yes |
Remarks
◆ The above capacity comes from 8mm biomass pellets production.
◆ The final capacity of Pellet Mill depends on the features of raw
materials, operation and maintenance,etc.
◆ There are 2 rollers in the pressing chamber.
Except 1-1.5t.h wood pellet mill machine :
Main Power : 90kw, 110kw, 132kw,200kw
Capacity : 1-3 tons/hour
Application : Medium to large-scale pellet production.
4The wearing parts of wood sawdust pellet mill machine:When the
material go into the chamber ,it is squeezed by ring die and roller
shell ,so this two parts are easy to be worn .For different
material such as soft wood and hard wood ,it would result in
different degree wearing ,and the cleanliness of material like if
iron stuff is inside or not ,the moisture etc. all will influence
using time of ring die and roller shell .
5.Factory introduction :Our factory was founded 2003, which was the
earliest manufacturer of biomass pelletizing machines in China.
Since then we has only produced biomass pelleting and related
machines, wear parts for the entire pelletizing technology and
plant. It is located in HuqiaoTown, ,Liyang City, Jiangsu. Its core
business includes design, manufacture,installation, assembly,
training, accessories, and after-sales servicof machinery and
production lines used in biomass pellet industry. Well over 400
plants and machines from our factory have since enjoyed success
with continuous use domestic an worldwide, including:
Vietnam, Thailand, Malaysia, Indonesia, Russia, Bulgaria, Serbia,
England, Greece, Chile,
Mexico, Australia, etc.
Why choose us :
Profession and Duty :
1. large CNC die drilling center
2. Pellet mill machine assembly and testing center
3. Large embryo forging base
4. Auxiliary manufacturing base and pellet production test center
