1.5-2th Ring Die Pellet Machine Rice Husk Biomass Wood Pelletizer
In Vietnam
Ring die pellet mill is special designed to make pellet by high
pressure pressed ,is widely used in pellet plant ,biomass energy
,gasifier workshop .The finished pellet is alternative of
traditional fuel :coal ,gas .The biofuels made from compressed
organic matter or biomass. Pellets can be made from any one of five
general categories of biomass: industrial waste and co-products,
food waste, agricultural residues, energy crops, and virgin lumber
.
The raw material of ring die pellet mill is forest waste such as
Pine (camphor pine, larch pine, white pine), redwood, poplar,
eucalyptus, fir, miscellaneous wood, wood chip ,shaving ,sawdust
etc agriculture waste such as :rice husk ,kinds of straw ,shell
,etc .
The caloric value table with different material :
| Raw material | Ash content(Aar%) | Low caloric value (kcal/kg) |
| Stalk type | <=6% | 3200-3700 |
| Pinw type | <=0.9% | 4300-4500 |
| Hardwood type | <=0.9% | 4500 |
| Softwood type | <=1.1% | 4300 |
| Stalk type :Bean stalk, cotton stalk, peanut shell, corn stalk etc. |
| Hardwood type:Oak and elm etc. |
| Softwood type:Poplar, birch, fir. |

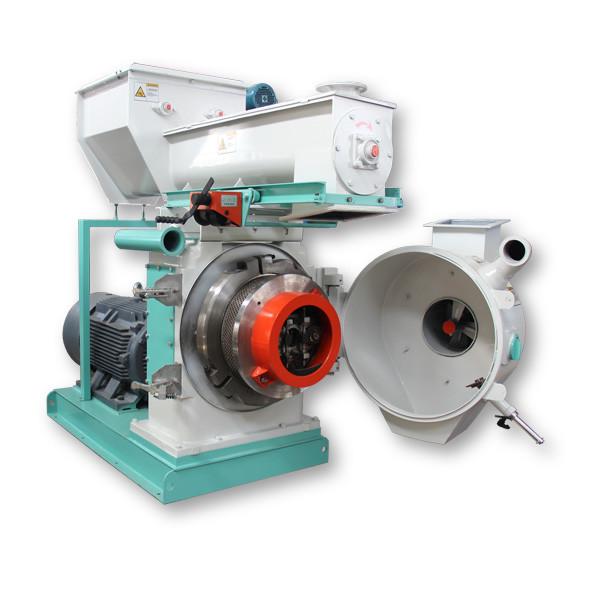

The ring die pellet mill :
Technical parameter :
| No | Manufacturer | Shandong Encke |
| 1 | Model No. | SD508 |
| 2 | Capacity | 1.5-2T/H |
| 3 | Mainly motor | 132 KW |
| 4 | Lubrication pump motor | 0.37KW |
| 5 | Cutter motor | 1.1KW |
| 6 | Cooling motor | 2.2KW |
| 7 | Type | Horizontal ring die |
| 8 | Dimension of machine | 2650-1500-2300mm |
| 9 | Weight of machine | 3.5t/h |
| 10 | Output pellets diameter | 4mm, 6mm, 8mm, 10mm,as you request |
| 11 | Length of pellets | 1-10cm,as you request |
| 12 | Pellets density | 1.0-1.4g/cm3 |
Features:
1.The main transmission adopts high-precision gear drives and ring
die is in quick-release hoop type which efficiency is 20% higher.
2.The machine transmission equips with high quality imported
bearing and oil seal which ensures transmission efficiency and
stability and operating in low noise.
3.The cutting-edge compensation -type serpentine spring couping has
the advantage of scientific structure, compact, safety and low
breakdown rate.
4.To strength working intensity of main parts in material and
heat-treating process which reach the requirement of pellets.
5.To add non-stop refueling system and cooling system results in a
smooth and stable operation and reliable pellets quality.
Principle: Ring die speeds highly driving press roller, the
material is forced into the pelleting chamber then squeezed into
pellets.
